💡We are true professionals at core removing. When it comes to efficiently removing cores, core residues or moulding sand, we have coring solutions for all needs.

Our products include hammer stations, vibration stations, decoring machines for manual loading and unloading as well as fully automated decoring systems.

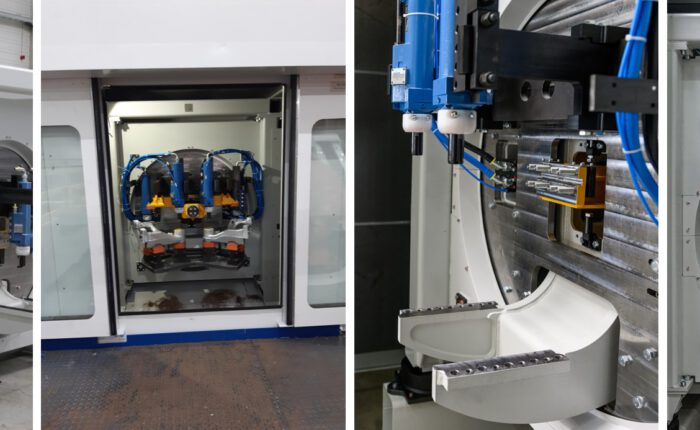

Today we would like to introduce our 3 in 1 decoring machine:

Our 3-in-1 decoring unit combines the process steps hammering, vibrating and turning in one machine. Sand only accumulates at one point. Sand carry-over is reduced. Only one loading and unloading process is required for three process steps.

We do not use complex gears for turning and vibrating. This solution makes our machine extremely robust and the susceptibility to errors low.

In our 3-in-1 decoring machine, two powerful unbalance motors in counter-rotating operation ensure directed oscillation. The machine can be loaded and unloaded manually or with a robot.

The 3-in-1 decoring unit is soundproofed and is equipped with a loading door that opens and closes automatically. The decoring machine can be equipped with up to four pneumatic hammers.

 Among other things, our decoring solutions are suitable for:
Cylinderheads, engineblocks, electricmotorhousings, subframes, rear subframes, knuckles, heat exchangers, structural parts and many more.
